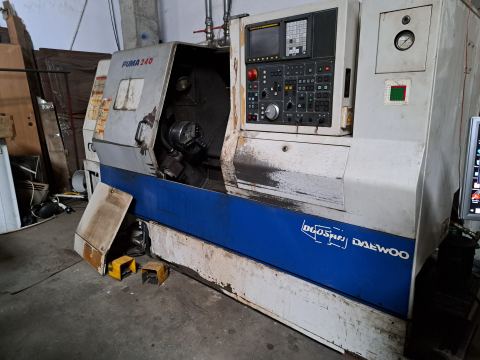

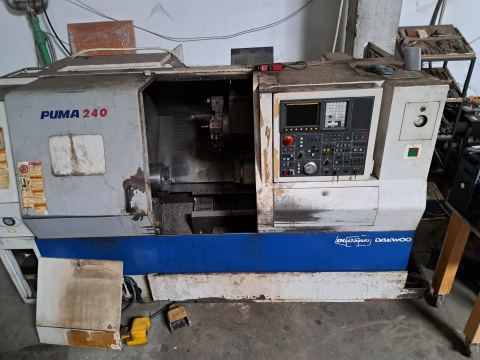

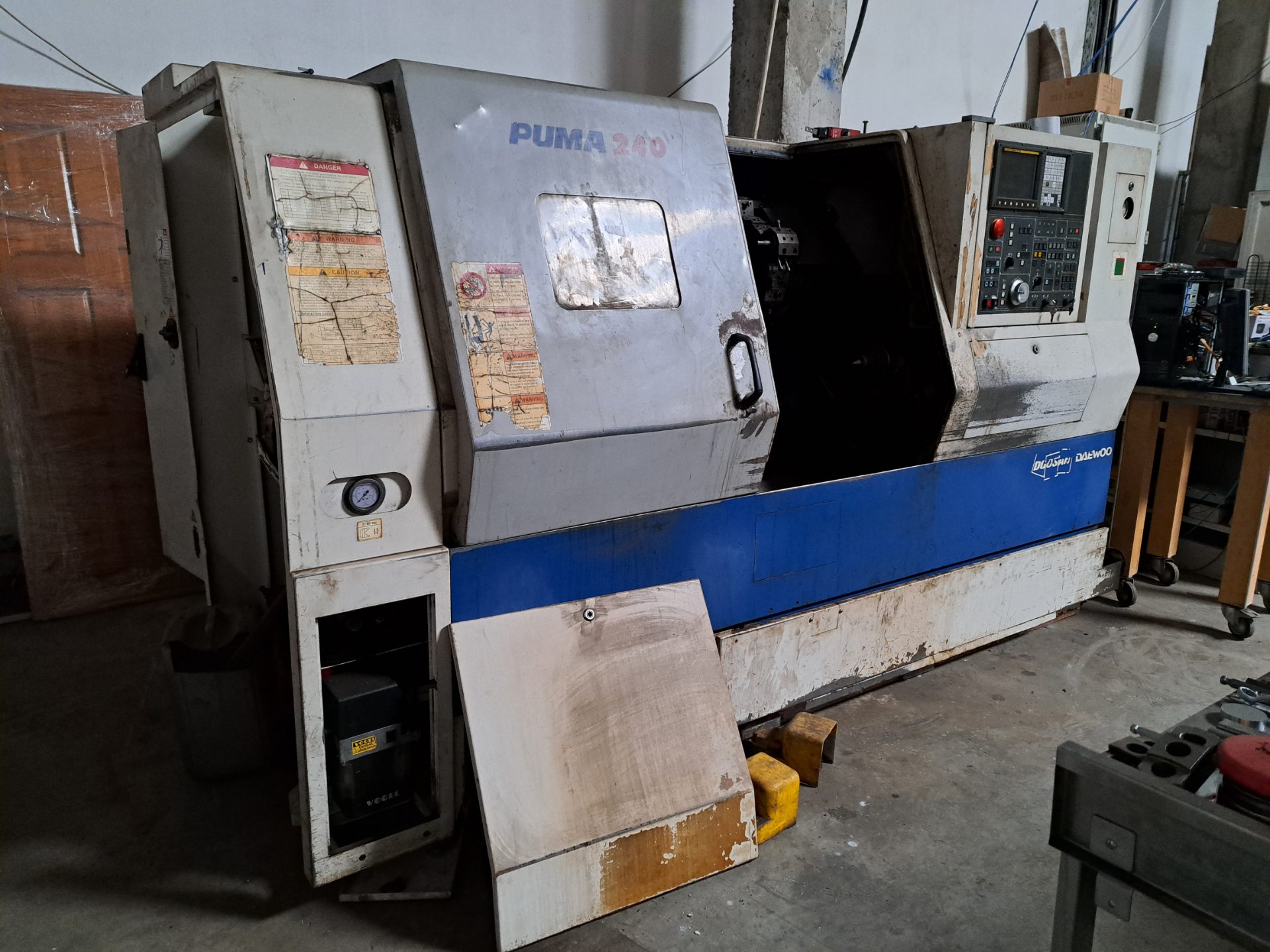

Daewoo PUMA 240 CNC turning center (CNC lathe),Specification Daewoo PUMA 240 Machine type CNC turning center / slant-bed lathe CNC FANUC Series 0i-TB — confirmed from your photo Axes X + Z Swing over bed ~550 mm Swing over cross slide ~390 mm Max turning diameter up to ~350 mm Max turning length ~550–562 mm X travel ~242 mm Z travel ~580 mm Spindle speed 45–4,500 rpm Main spindle motor ~15 kW continuous / 18.5 kW 30-min rating Spindle nose typically A2-6 Spindle bore ~76 mm on many versions Bar capacity ~65–66 mm Turret 12 stations Chuck normally 8", although 10" configurations exist Approx. weight ~4,200–4,300 kg Approx. footprint ~3.0–3.2 × 1.6 × 1.75 m
